Electronic Timer Drain Valves

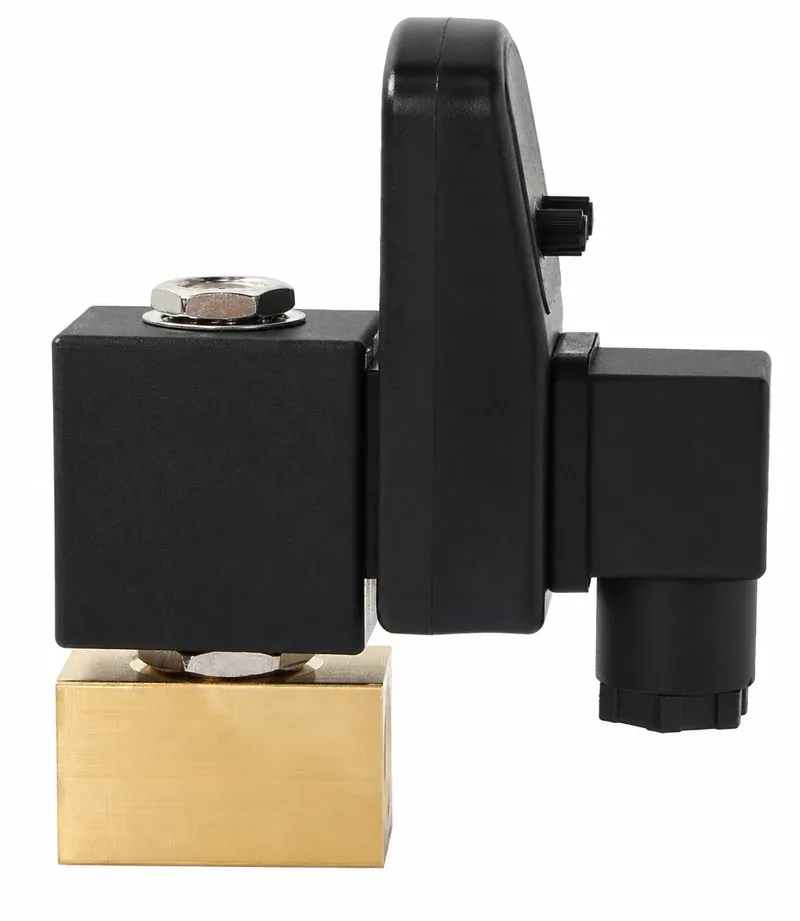

TimeFlow Electronic Timer Drain Valve
Timed condensate drainage combining a brass solenoid valve with an adjustable electronic controller for repeatable discharge cycles.
Specifications
- Product type
- Electronic timer drain valve
- Model
- AZ-DV-T-G12-230AC
- Connection
- G1/2
- Voltage
- 230 VAC 50/60 Hz
- Power
- 20 W
- Ingress protection
- IP65
Timed condensate drainage combining a brass solenoid valve with an adjustable electronic controller for repeatable discharge cycles.
Highlights
• Adjustable timing: set discharge duration and interval to suit the condensate load.
• Direct acting package: integrated timer, coil and valve simplify installation and service.
• Manual test control: convenient test function supports commissioning and routine checks.
Application
Recommended for compressors, air receivers, dryers, separators and filters where scheduled condensate discharge is required.
Specifications
AERZIX Model | Valve Type | Connection | Rated Voltage | Power | Ingress Protection | Duty Rating | Valve Body |
AZ-DV-T-G12-230AC | Electronic timer drain | G1/2 | 230 VAC, 50/60 Hz | 20 W | IP65 | 100% ED | Brass |
