Float Drain Valves

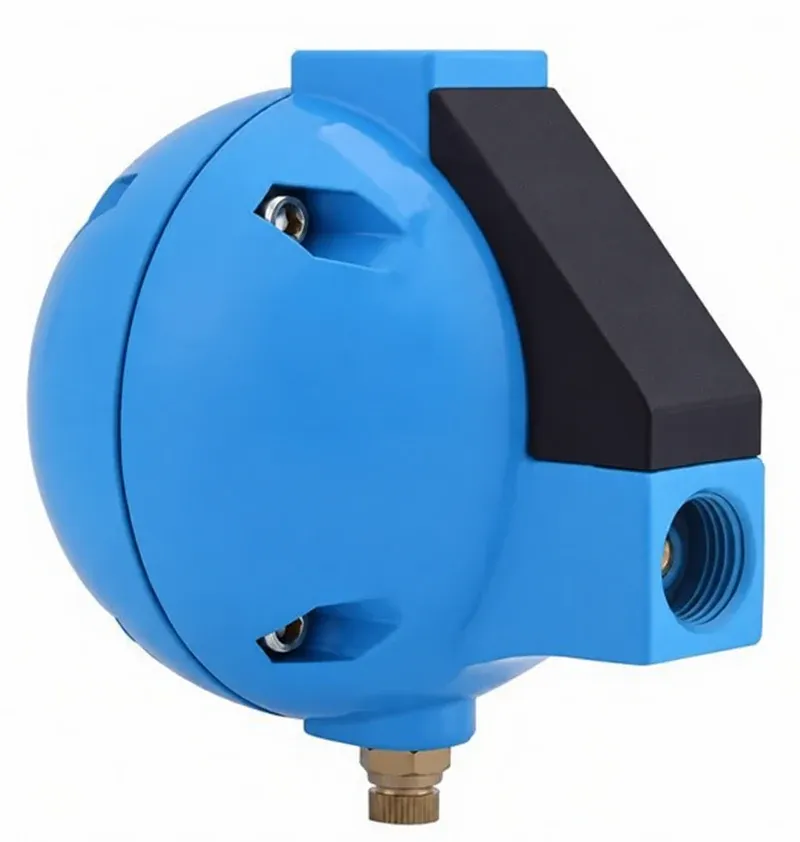

FlowGuard Mechanical Float Drain Valve
Automatic condensate discharge for compressed-air systems, driven by an internal float mechanism with no electrical supply required.
Specifications
- Product type
- Mechanical float drain valve
- Model
- AZ-DV-F-G12-20
- Connection
- 1/2 BSP
- Max. pressure
- 20 bar
- Max. temperature
- 100°C
- Power
- None (fully mechanical)
Automatic condensate discharge for compressed-air systems, driven by an internal float mechanism with no electrical supply required.
Highlights
• Fully mechanical: float-actuated drainage without timers, wiring or external controls.
• Pressure-ready: compact enclosed design for demanding compressed-air condensate service.
• Simple installation: dedicated inlet and outlet ports support clean, direct piping.
Application
Recommended for air receivers, separators, dryers and filtration systems requiring automatic drainage without electrical power.
Specifications
AERZIX Model | Operating Principle | Connection | Maximum Pressure | Maximum Temperature | Power Requirement | Recommended Medium | Installation |
AZ-DV-F-G12-20 | Mechanical float | 1/2 BSP inlet / outlet | 20 bar | 100°C | None | Compressed-air condensate | Vertical; drain outlet downward |
